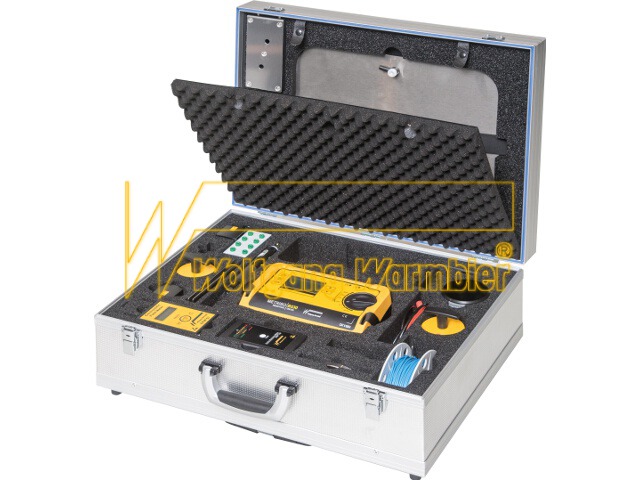

ESD Audit Kit (Version MetrisoB530)
페이지 정보
본문
| General information | The ESD-Audit-Kit includes instruments and equipment needed to perform ESD audits according to IEC 61340-5-1 and for qualification / verification of ESD control elements. | ||
|---|---|---|---|
| Technical data | Applications: • Testing flooring systems acc. to IEC 61340-4-1 and to IEC 61340-4-5 • Testing chairs, workstations, shelves, transport cars and automated handling equipment acc. IEC 61340-2-3 • Testing packaging materials acc. to IEC 61340-2-3 • Testing electrostatic fields • Testing the point-to-point resistance of garments acc. to IEC 61340-4-9 • Evaluating temperature and relative humidity • Evaluating Ionizers acc. to IEC 61340-4-7 |
||
| Delivery range | 7110.600 Aluminium case • 7100.B530.G* High resistance meter Metriso B530 with connecting cables • 7100.TF530 digital Thermo-Hygrometer TF-530 • 7220.45 Handheld probe model 45 • 7220.840* Two-Point-Probe model 840 (mini Probe) • 7220.880* Concentric ring probe model 880 • 7100.SRM110.A* Surface Resistance meter SRM 110 • 7100.EFM51.CPS* Electrostatic Field Meter EFM51 with charged plate set • 7220.850 Probe Model 850 (2 probes) • 2200.110 Grounding plug • 7110.E8 8-socket grounding box • 7100.2000.TR50 Cable reel, 50 m • 7100.PGT100.102 Metal plate 400 x 3000 x 2 mm including 10 mm banana plug adapter • 7220.880.6 Insulative plate 120 x 120 x 6 mm (2 pcs.) • 7220.880.9 Probe made of stainless steel ø 120 mm • 7220.880.L Guard cord, blue, 1,5 m • Note: * Measuring equipment including calibration certificate • Weight of fully equipped case: 20 kg |
||
ESD Audit Kit (Version MetrisoB530)
