Metriso3000 Test Kit
페이지 정보
본문
| General information | Metriso® 3000 - test kit • Suitable for resistance point-to-point and resistance to ground measurements • Integrated data logger with USB communication port for data transmission (50.000 test values). The supplied Report Generating Software ETC allows to generate a complete test report • Humidity and temperature sensor • A barcode scanner can be used in order to record measurement points before testing • Menu language: German/English/French/Spanish |
||
|---|---|---|---|
| Technical data | • Test voltage / Test current: 1 mA <= I <= 1,3 mA ◦ High ohmic range: DC 10 volts,100 volts and 500 volts • Test range: ◦ low ohmic range: 0 to 10 kOhm ◦ high ohmic range: 1 kOhm to 1,2 TOhm • Operation: Battery operated • Probes: ◦ 2 x Model 850 (weight: 2,27 kg / ø 63,5 mm) with conductive rubber, ◦ 1 x hand-held probe Model 45 • complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5 |
||

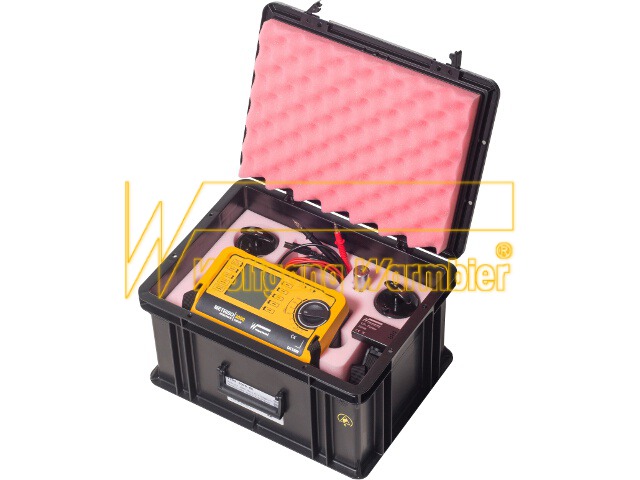

| Delivery range | • digital high resistance tester • temperature and relative humidity sensor • USB port • PC software for Windows® • 2 probes • a hand-held probe with connecting cable • user's instructions in German, English and French • calibration certificate • conductive carrying case fitted with dissipative pink foam |
||
Metriso3000 Test Kit
