Electrostatic Volt Meter ESVM2000
페이지 정보
본문

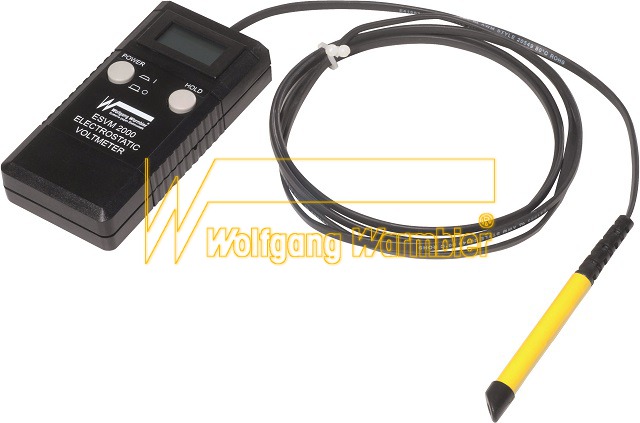

| General information | The electrostatic voltmeter - ESVM 2000 is a hand-held non-contacting voltmeter which measures the electrostatic charges on very small objects . It is an ideal instrument for measurements on semiconductors, printed circuit boards, connector pins and other areas where a conventional electrostatic fieldmeter cannot be used. The ESVM 2000 comes with a high resolution sensor which provides accurate results even in very small areas. |
||
|---|---|---|---|
| Technical data | • Dimension: 6 x 3 x 13 cm (W x H x D) • Range: 0 up to ± 2 kV DC • Accuracy: 5% of full scale • Recommended Probe-to-Test surface distance: 15 mm ± 10 mm • Power supply: battery operated • Display: LCD-Display ( 3 ½ digits) • Sensor: probe (10 x 80 mm) |
||

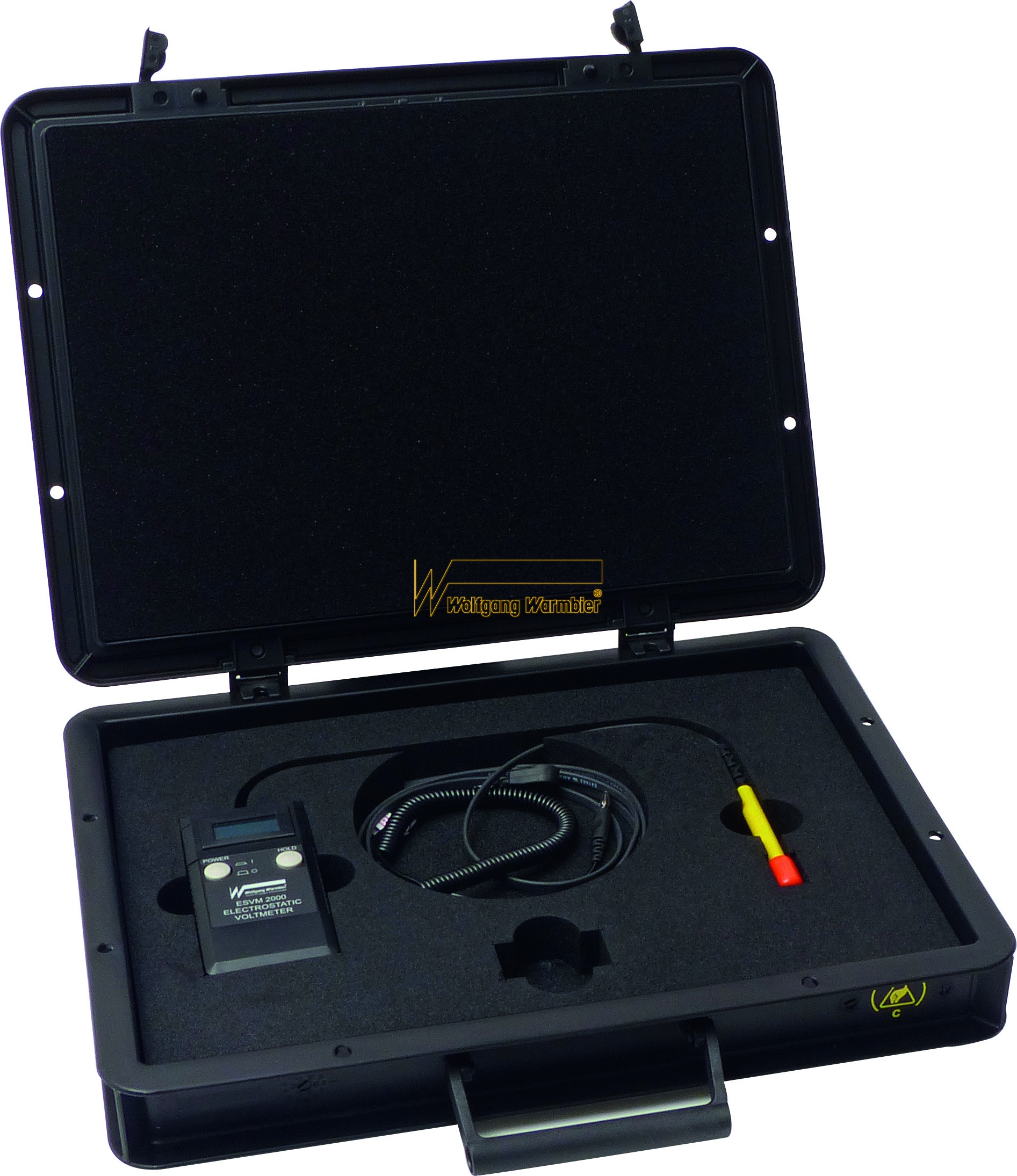

| Delivery range | • ESVM 2000 • probe • 9 Volt battery • conductive carrying case • user's instructions in German and English • calibration certificate |
||
Electrostatic Volt Meter ESVM2000
